TS9-007AU1
Item: LED Tact switch
Part Number:TS9-007AU1

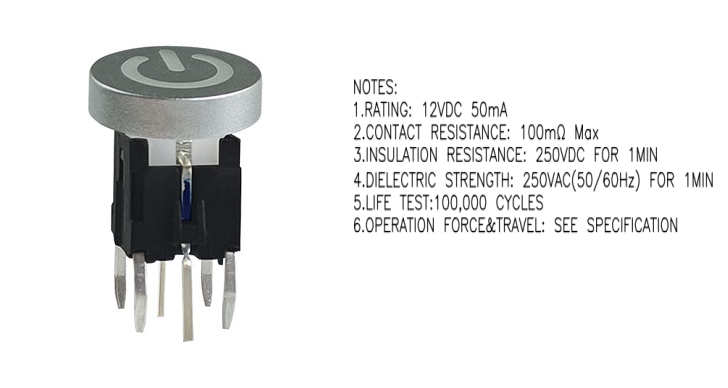

Specification:
Rating: 12VDC, 50mA
Contact Resistance:100mΩ Max(initial)
Insulation Resistance:100mΩ MIN
Breakdown Voltage: 250VAC for 1 minute
Operating Force: 250±50gf
Total Travel: 0.25±0.15mm
Operating Temperature: -20℃～70℃
Life Cycle: 100,000 Cycle
Function: Momentary
Application:
The light touch switch has the advantages of small contact resistance load, been widely used in electronic equipment, household appliances and so on.
Datasheet Download:
/upload/file/20240614/20240614103725_92261.pdf
