TS15-9W56WTX

Item: LED Tact switch

Part Number:TS15-9W56TWX

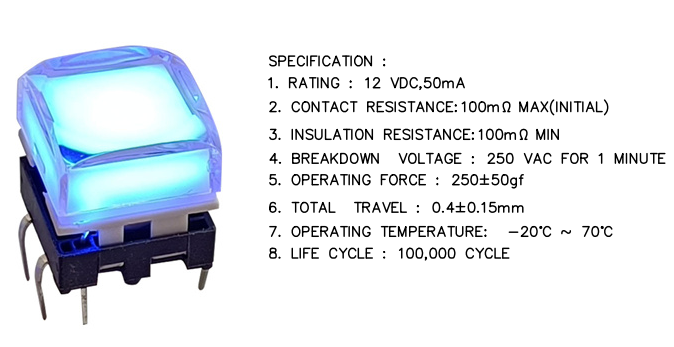

Specification:

Rating: 12VDC, 50mA
Contact Resistance:100mΩ Max(initial)
Insulation Resistance:100mΩ MIN
Breakdown Voltage: 250VAC for 1 minute
Operating Force: 250±50gf
Total Travel: 0.4±0.15mm
Operating Temperature: -20℃～70℃
Life Cycle: 100,000 Cycle
Function: Momentary

Application:

Audio/ Visual
Computer Peripherals
Consumer Electronic
Instrumentation
Telecommunication
Medical Equipment

Datasheet download:

/upload/file/20240613/20240613162816_89899.pdf
