DV-16-A00-NN1-200E-000






Features

● Standard miniature switch with sliver contacts

● Switching current 0.1 to 16A at 250VAC

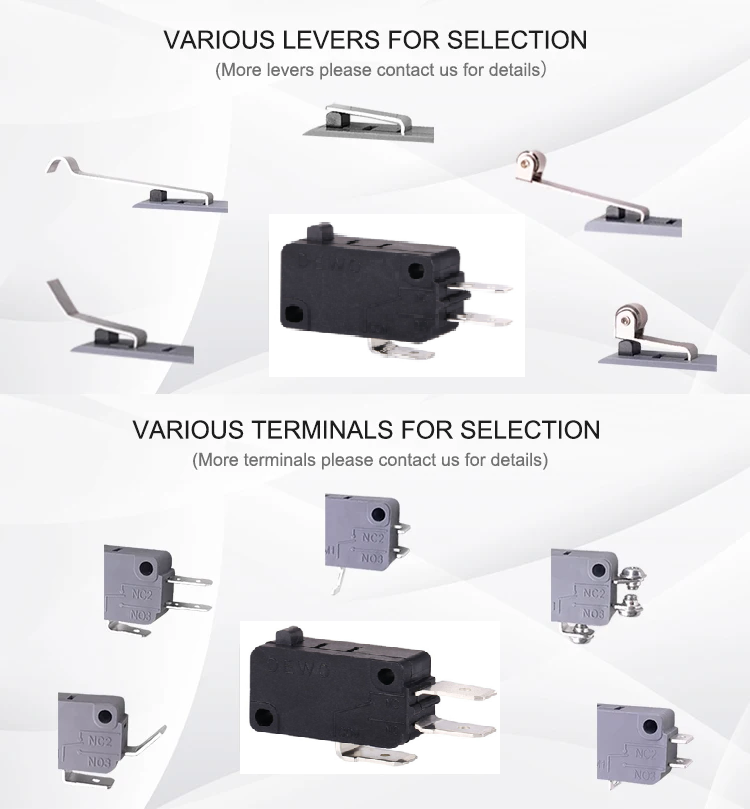

● Wide variety of auxiliary actuators and terminal options

● Housing material PET (color Black, Grey, White and so on)

● Ambient temperature -40 to max. +125 °C

● Approved according to IEC 61058-1 / UL 61058-1 (25T85 versions) & GB/T15092-1 (40T125 versions)

●  Degree of protection IP40

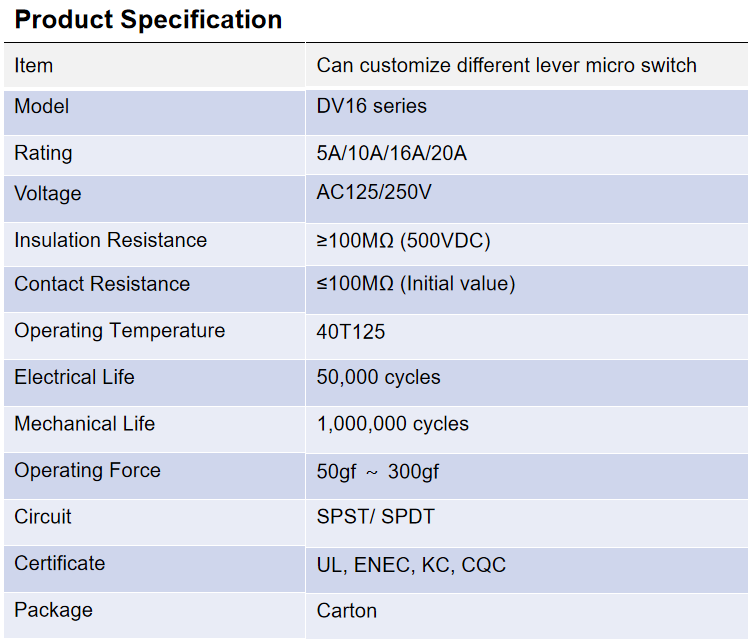

Item

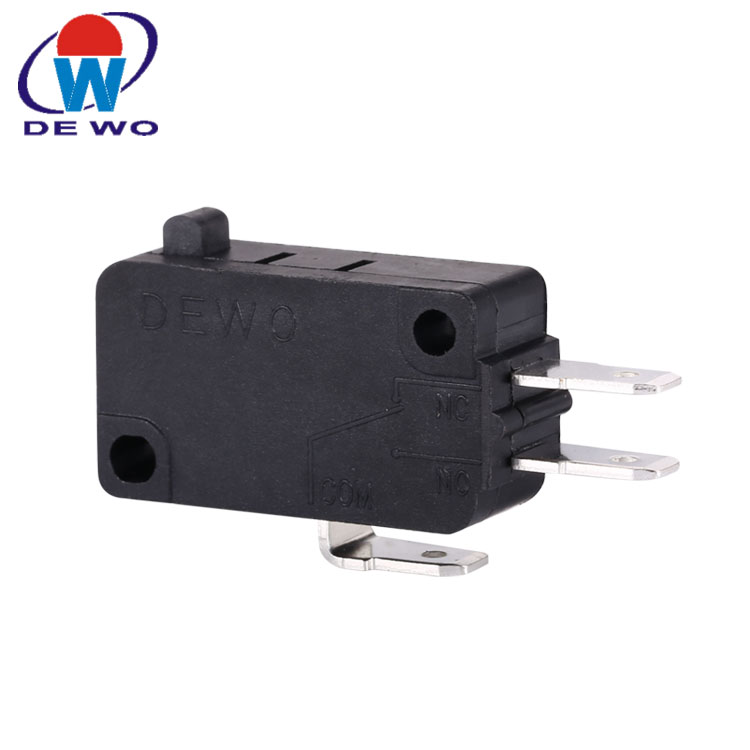

16a Pin Plunger Micro Switch

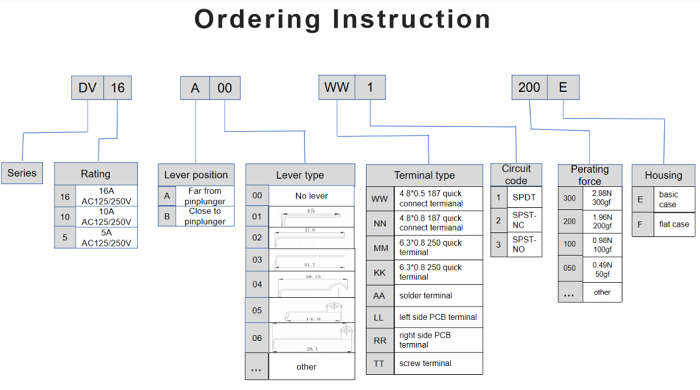

Model Number

DV-16-A00-NN1-200E

Rating

16(4)A 125/250VAC

Temperature Range

-40°C~+125°C

IP Code

IP40

Dimension

27.9*18.4*10.3mm

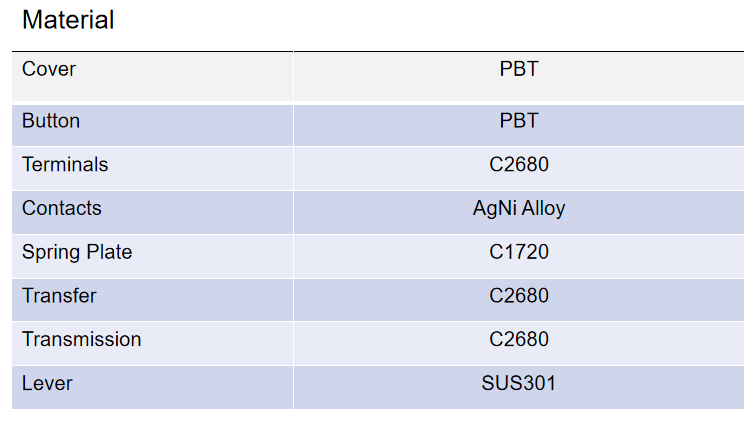

Material of Case & Knob

PBT

Material of Contacts

AgNi10

Unit Weight

About 7g

Electrical Service Life

50,000Cycles

Mechanical Service Life

1,000,000Cycles

Approval

UL, CUL, ENEC, CQC, CB, KC

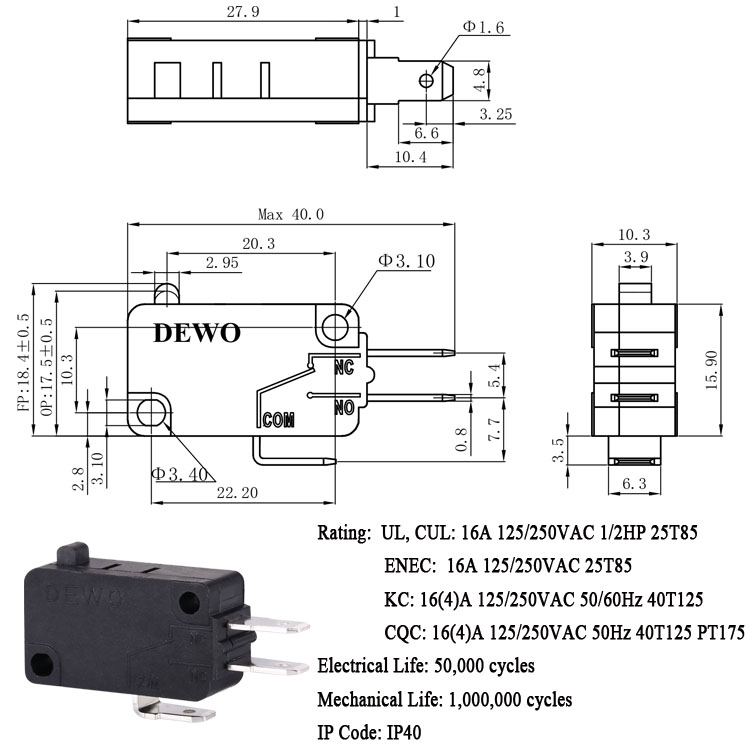

Drawing



Certificate


Our services

1. Factory inspection and samples testing available.

2. Supplied directly from factory for more than 10 years.

3. New packing design and new product research development.

4. Accept to customize products up to specification.

5. Small order welcome.

6. Payment by Paypal, Western Union is supported.

7. Provide prompt service and after-sale service.


Packing and delivery

• 100pcs micro switch per blister box, 10 boxes per carton(31*24*25cm), 20 boxes per carton(50*32*25cm)

image005_副本 image007_副本

• Transport by express, by air, by sea, by car or by train is as your requested.

image010_副本


About DEWO



Dongguan DEWO Electronic Technology Co., Ltd was established in 2011. With several years’ experience of research and developing of switch making we became a professional switch manufacturer.

image013_副本image015_副本


DEWO has passed the ISO9001 and ISO14001system certification successfully.

DEWO main products include: Micro switch series, Slide switch series, tact switch series, Push switch series, etc. And we can product various special switch according to customer requirements. "Realistic, Innovation, Serve Customer" is the common sense of all DEWO staff. Depend on our experienced R&D staff, scientific and meticulous production and testing technology and standardized management system our product passed the UL, CUL, CQC, ENEC, KC etc. international certification as well as the ROHS environmental protection requirements.

DEWO get grate reputation from our clients by excellent quality, reasonable price, perfect after-sale service, and faster delivery. DEWO and our clients get together and to build up brilliant future.
